Helios Max

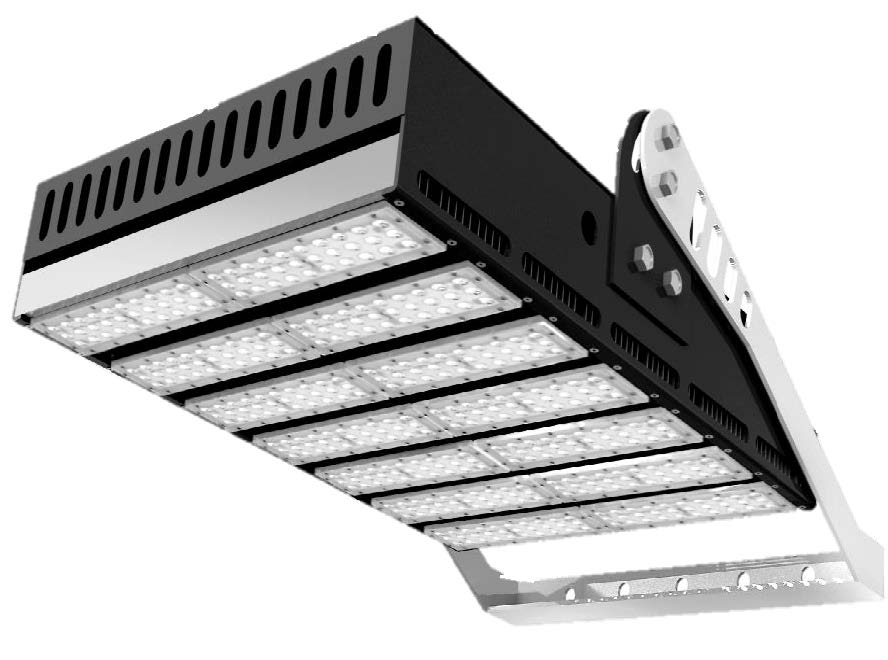

1200W HCM
1200W HCM Driver assembly

Helios Max

The new Australian made HELIOS MAX Led Floodlight Series is now available in 960W, 1280W
and 1600W. These lights are suitable for any large area lighting, or
high mast applications, such as, wharfs, logistics hardstands, mine sites, stadiums
and sporting venues, airports, railway yards, transport depots, construction sites,
power stations,etc.

Note: For orders of 7 or more units please enquire about Wholesale pricing

All product prices are exclusive of GST

Wholesale Enquiry

Features & Benefits

  • LIGHTWEIGHT The HMS fittings are constructed from T6063 alloy extrusion, and with remote gear train, they are one of the lightest LED fittings in the world!
  • PRECISION OPTICS - Reduced glare and increased uniformity! - The Helios Max uses world class optics to cast an ASSYMETRIC Beam Pattern, which gives maximum light coverage per watt and maintains optimum uniformity.
  • 5 YEARS WARRANTY
  • THERMAL PROTECTION - Safer option for retro fitting!
  • HORIZONTAL MOUNTING - Safer for wind rated areas! - Due to the superior assymetric beam pattern, the HMS are installed at no more than 15 deg from horizontal in any situation. This low installed angle means the lowest windage co-efficient for this style of light, which is very important for high mast lights.

DOWNLOADS

Note: For product options listed on the datasheet but not included in our standard offering please reach out via the Wholesale enquiry form.

Specs & Variations

Part Number
Power
Lumen Output
CRI
IK rating
IP rating
Colour Temperature
HMS960-40VSD
960W
123,200lm
70-90Ra
IK09
IP66
4000 - 5700K (4000K standard)
HMS1280-40VSD
1280W
164,000lm
70-90Ra
IK09
IP66
4000 - 5700K (4000K standard)
HMS1600-40VSD
1600W
196,000lm
70-90Ra
IK09
IP66
4000 - 5700K (4000K standard)
