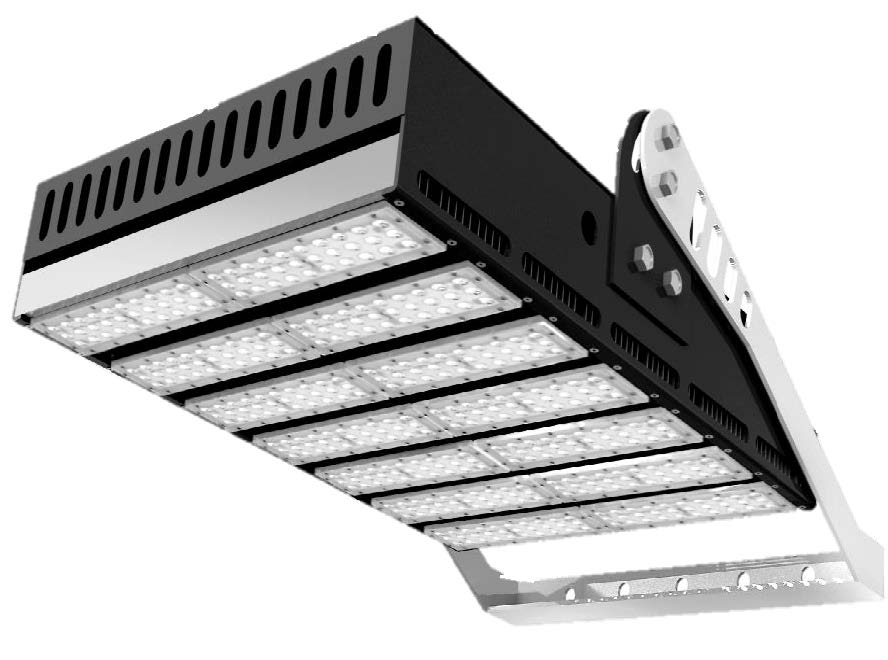

Helios Max

The new Australian made HELIOS MAX Led Floodlight Series is now available in 960W, 1280W
and 1600W. These lights are suitable for any large area lighting, or
high mast applications, such as, wharfs, logistics hardstands, mine sites, stadiums
and sporting venues, airports, railway yards, transport depots, construction sites,
power stations,etc.

Click on Enquire Now to get more details

Categories: ,

Description

The new Australian made HELIOS MAX Led Floodlight Series is now available in 960W, 1280W
and 1600W. These lights are suitable for any large area lighting, or
high mast applications, such as, wharfs, logistics hardstands, mine sites, stadiums
and sporting venues, airports, railway yards, transport depots, construction sites,
power stations,etc.

Features & Benefits

  • LIGHTWEIGHT The HMS fittings are constructed from T6063 alloy extrusion, and with remote gear train, they are one of the lightest LED fittings in the world!
  • PRECISION OPTICS - Reduced glare and increased uniformity! - The Helios Max uses world class optics to cast an ASSYMETRIC Beam Pattern, which gives maximum light coverage per watt and maintains optimum uniformity.
  • 5 YEARS WARRANTY
  • THERMAL PROTECTION - Safer option for retro fitting!
  • HORIZONTAL MOUNTING - Safer for wind rated areas! - Due to the superior assymetric beam pattern, the HMS are installed at no more than 15 deg from horizontal in any situation. This low installed angle means the lowest windage co-efficient for this style of light, which is very important for high mast lights.

Specs & Variations

Part Number Power Lumen Output CRI IK Rating IP Rating Colour Temperature
HMS960-40VSD 960W 123,200 lm 70-90 Ra IK09 IP66 4000 - 5700K (4000K standard)
HMS1280-40VSD 1280W 164,000 lm 70-90 Ra IK09 IP66 4000 - 5700K (4000K standard)
HMS1600-40VSD 1600W 196,000 lm 70-90 Ra IK09 IP66 4000 - 5700K (4000K standard)
